i1000.1 Amplifier

Description

We’re in a time where small is popular. Reduced, more economical vehicles are more and more desirable. But that doesn’t mean you have to sacrifice massive power for your audio system. The Precision Power iON amplifiers pack vast amounts of power into small chassis thanks to marvelously efficient full-range Class-D topology and SMT technology.

Complimented with every possible preamp adjustment, the iON series leaves nothing to be desired. This series includes a four-channel model with built-in Bluetooth (i520.4B) to stream audio from any smartphone app to the vehicle’s speakers. Seamlessly pair your smartphone or other enabled smart devices for continuous audio playback through speakers, great for when you can’t have or change a source unit in a vehicle. This is a noteworthy addition to off-road trucks, motorcycles, or personal watercraft overlooking a music source unit. The Bluetooth model also comes with a pass-through cable to connect additional amplifiers to create a daisy chain configuration.

Are you using an original or factory radio? No problem, these amplifiers are equipped with an Automatic Hi-Level Signal Sensing Turn-On. There is no need to run a remote wire turn on; this amplifier will automatically detect the sound signal and turn on and off the amplifier. (Hi-Level Input only)

Specifications

Compact iON Series Amplifiers

1 – Ohm Mono Stable

Direct Short, Thermal, Overload Circuit – Protection

Hybrid Aluminum Alloy Heatsink for Heat Dissipation

200mV-6V High-Level / Low-Level Input Capable

Signal Sensing Turn-On (Hi-Level Input Only)

Variable 12dB Low & Subsonic Crossovers

12dB Bass Boost Increases Low Octave Harmonics

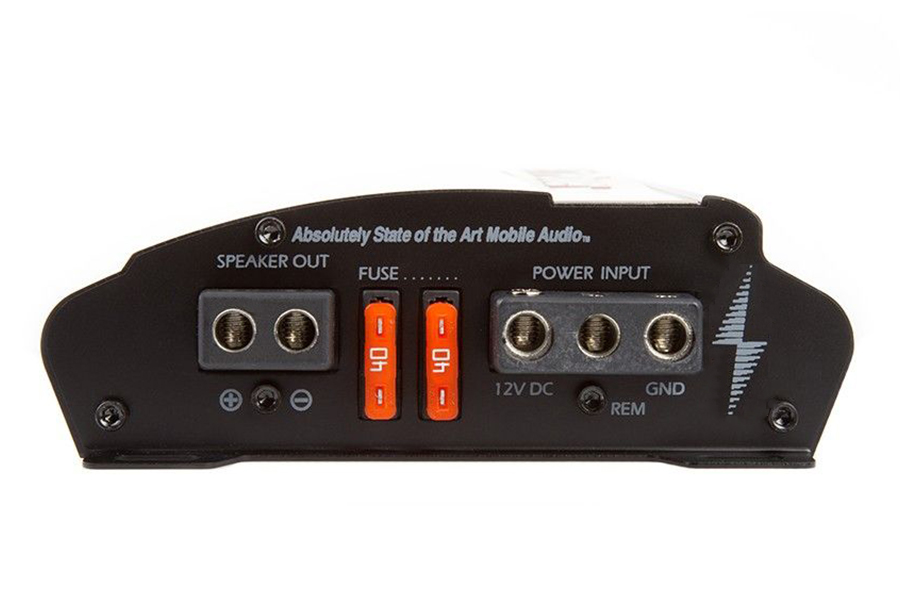

Direct 8ga. Power & Speaker Terminals

Amplifier Dimensions: 5.375″W x 1.875″H x 10.25″L

Dash Mounted Gain Controller Included

Made in Korea

Support

iON Amplifier Owner’s Manual (.pdf)

iON Amplifier Cut Sheet (.png)

Warranty Procedure

Please complete the entire Return Authorization Request Form. Read carefully and fill out all the information accordingly. For non-warranty repairs, please provide details of the problem and request an estimate before sending the product. After receiving and approving your completed request, Precision Power will issue a Return Authorization (RA) Number, which will be forwarded to you via e-mail.

RMS Power 4Ω	350W x 1 (14.4V, 35Hz, ≤ 1% THD+N)
RMS Power 2Ω	600W x 1 (14.4V, 35Hz, ≤ 1% THD+N)
RMS Power 1Ω	1,000W x 1 (14.4V, 35Hz, ≤ 1% THD+N)

RMS Power 4Ω	300W x 1 (14.4V, 35Hz, ≤ 1% THD+N)
RMS Power 2Ω	450W x 1 (14.4V, 35Hz, ≤ 1% THD+N)
RMS Power 1Ω	650W x 1 (14.4V, 35Hz, ≤ 1% THD+N)

RMS Power 4Ω	100W x 4 (14.4V, 1KHz, ≤ 1% THD+N)
RMS Power 2Ω	130W x 4 (14.4V, 1KHz, ≤ 1% THD+N)
RMS Bridged 4Ω	260W x 2 (14.4V, 1KHz, ≤ 1% THD+N)

RMS Power 4Ω	100W x 4 (14.4V, 1KHz, ≤ 1% THD+N)
RMS Power 2Ω	130W x 4 (14.4V, 1KHz, ≤ 1% THD+N)
RMS Bridged 4Ω	260W x 2 (14.4V, 1KHz, ≤ 1% THD+N)

RMS Power 4Ω	60W x 4+250W (14.4V,1KHz, 35Hz ≤1% THD+N)
RMS Power 2Ω	100W x 4+450W (14.4V,1KHz, 35Hz ≤1% THD+N)
RMS Bridged 4Ω	200W x 2+450W (14.4V,1KHz, 35Hz ≤1% THD+N)
