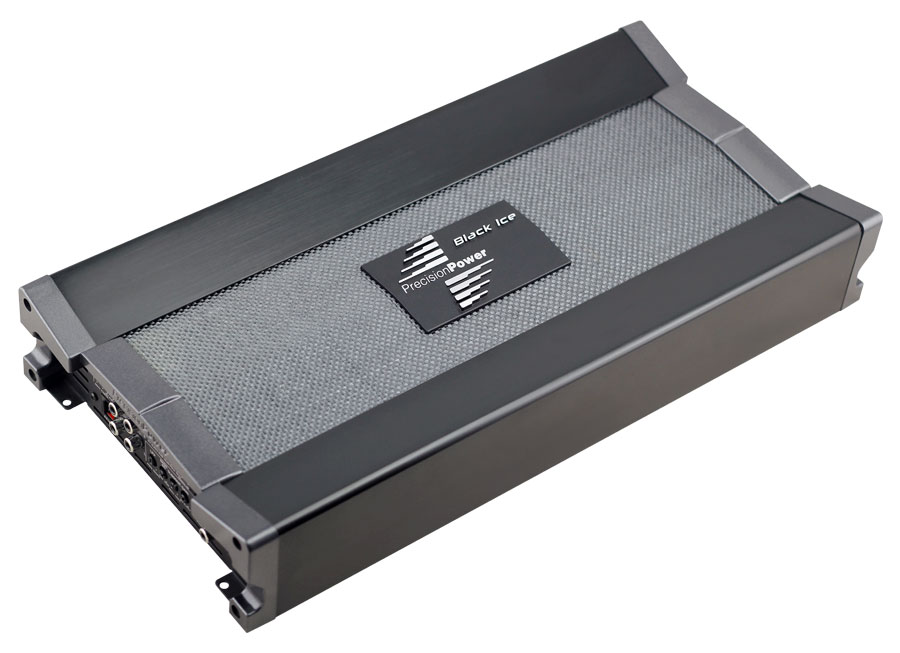

ICE2200.5 Amplifier

Description

Precision Power is proud to present the boldest generation of amplifiers, Black Ice. Over compensated high headroom power supplies are capable of producing more than conventional power gain. Selected models accept a balanced signal for the purest sound. Furthermore, double-sided PCBs with all surface mount technology enhance the quality of your listening experience.

With selected models handling .5-Ohm minimum impedance, Black Ice is sure to give you PLENTY of bass while still looking respectable doing it! Grey finish with an appropriate solid chassis, how could you go wrong!

Specifications

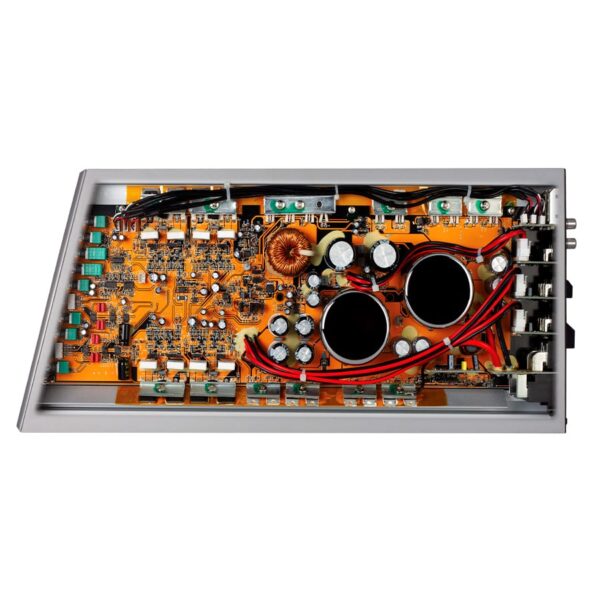

Double Sided PCB Black Ice Amplifiers

2-Ohm Stereo, 4-Ohm Bridged Full Range Operation

Direct Short, Thermal, Overload Circuit – Protection

Tri-Mode Capable (2/3/5Ch Models)

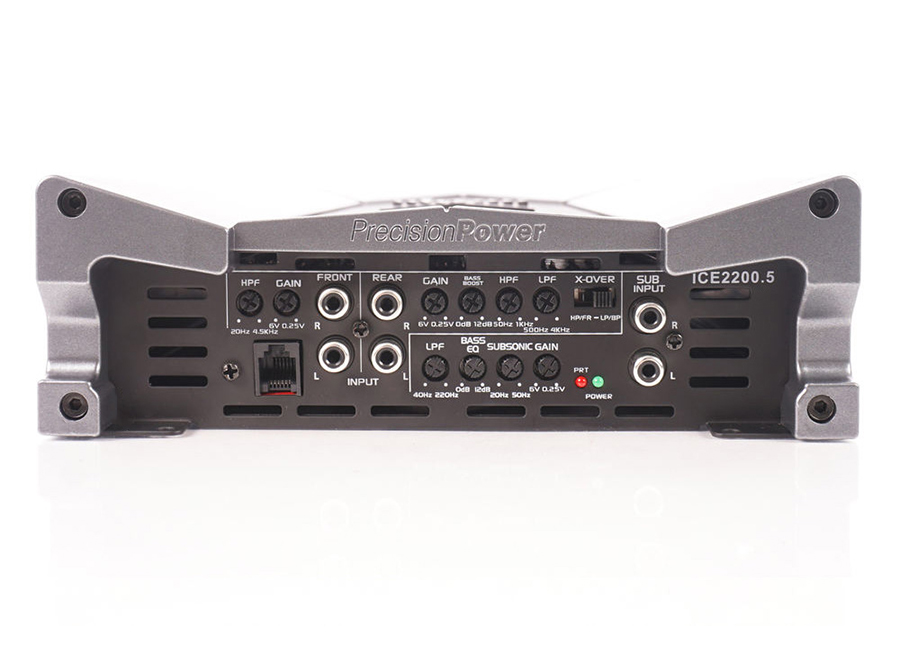

Variable 12dB High, Low & Subsonic Crossovers

Variable 12dB Band-Pass Crossover (2Ch. & 5Ch.)

Direct 4ga. Power & 12ga. Speaker Terminals

Amplifier Dimensions: 8.25″W x 2.25″H x 17″L

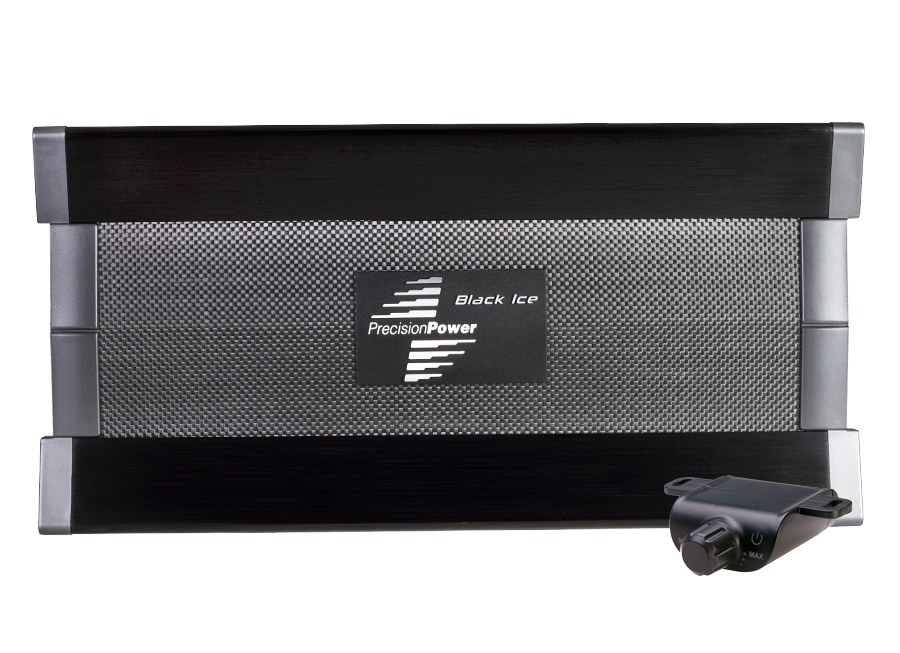

Dash Mounted Gain Controller Included

Support

Black Ice Amplifiers Owner’s Manual (.pdf)

Black Ice Amplifiers Cut Sheet (.png)

Warranty Procedure

Please complete the entire Return Authorization Request Form. Read carefully and fill out all the information accordingly. For non-warranty repairs, please provide details of the problem and request an estimate before sending the product. After receiving and approving your completed request, Precision Power will issue a Return Authorization (RA) Number, which will be forwarded to you via e-mail.

RMS Power 4Ω	90W x 4 + 380W(14.4V,1KHz,35Hz ≤1%THD+N)
RMS Power 2Ω	135W x 4 + 560W(14.4V,1KHz,35Hz ≤1%THD+N)
RMS Bridged 4Ω	270W x 2 + 560W (14.4V,1KHz,35Hz ≤1%THD+N)

RMS Power 4Ω	1,000W x 1 (14.4V, 35Hz, ≤ 1% THD+N)
RMS Power 2Ω	1,500W x 1 (14.4V, 35Hz, ≤ 1% THD+N)
RMS Power 1Ω	2,300W x 1 (14.4V, 35Hz, ≤ 1% THD+N)
RMS Power .5Ω	3,500W x 1 (14.4V, 35Hz, ≤ 1% THD+N)

RMS Power 4Ω	400W x 1 (14.4V, 35Hz, ≤ 1% THD+N)
RMS Power 2Ω	650W x 1 (14.4V, 35Hz, ≤ 1% THD+N)

RMS Power 4Ω	140W x 4 (14.4V, 1KHz, ≤ 1% THD+N)
RMS Power 2Ω	250W x 4 (14.4V, 1KHz, ≤ 1% THD+N)
RMS Bridged 4Ω	500W x 2 (14.4V, 1KHz, ≤ 1% THD+N)

RMS Power 4Ω	60W x 4+250W (14.4V,1KHz, 35Hz ≤1% THD+N)
RMS Power 2Ω	100W x 4+450W (14.4V,1KHz, 35Hz ≤1% THD+N)
RMS Bridged 4Ω	200W x 2+450W (14.4V,1KHz, 35Hz ≤1% THD+N)

Black Ice Series 5Ch Power Amplifier

Description
