Phantom Series Subwoofers

Woven Fiberglass Composite Cone

All Phantom subwoofers use fiberglass stranding woven together for ultimate strength and less elasticity. A heavy soaking in epoxy combined with the sonic qualities of pulp paper backing proves itself worthy of any system.

100% OFC 4-Layer Voice Coil

Phantom subwoofers use generous 1.50″ long, 2.5″ diameter 100% OFC Copper voice coils. A vented Aluminum former extract and dissipate any heat build-up, resulting in improved power handling.

Extended Polyurethane Surround

Polyurethane is a foam compound used in the manufacture of countless gasket and insulation products, known for its adhesive bonding properties. Phantom subwoofers utilize an extended excursion polyurethane surround for strength and flexiabiity during extreme movement.

Back Plate & T-Yoke Venting

Heat build-up is a leading cause of catastrophic woofer failure. Venting built into the T-Yoke, backplate, and voice coil extract and dissipate heat, ensuring Phantom subwoofers keep their cool.

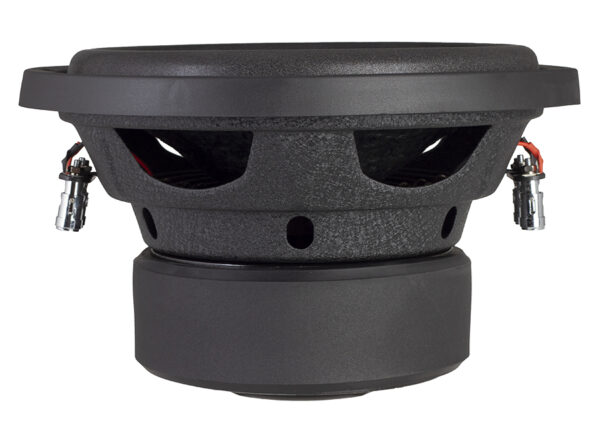

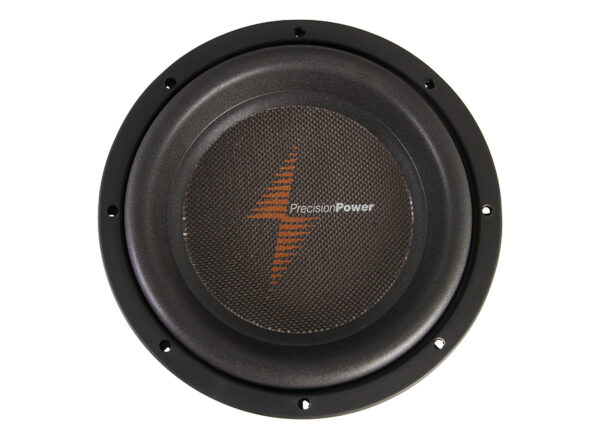

  • Phantom Series 10″ DVC Subwoofer
     RMS Power 720 Watts
     Mounting Depth 5.625″
     Voice Coil Configuration 2.5″ 2Ω DVC

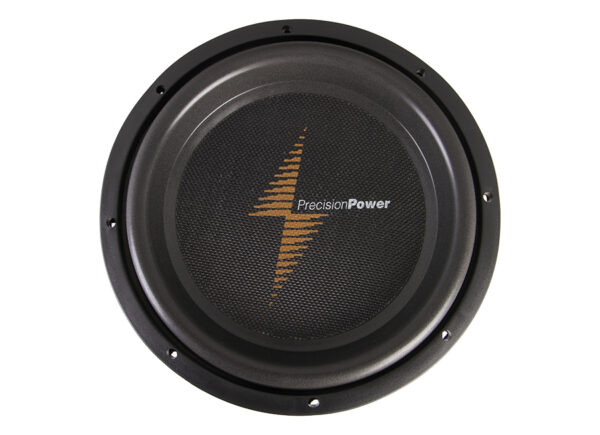

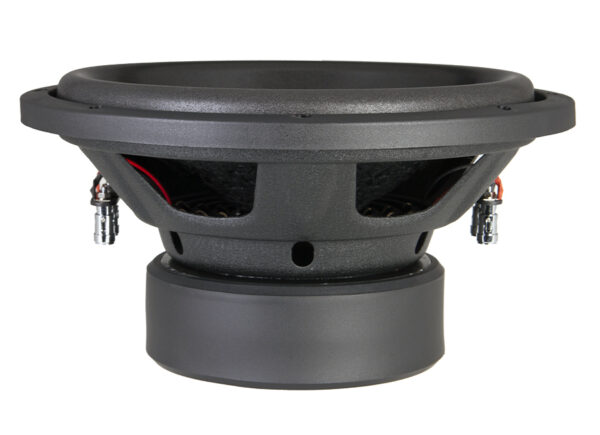

  • Phantom Series 12″ DVC Subwoofer
     RMS Power 850 Watts
     Mounting Depth 6″
     Voice Coil Configuration 2.5″ 2Ω DVC
