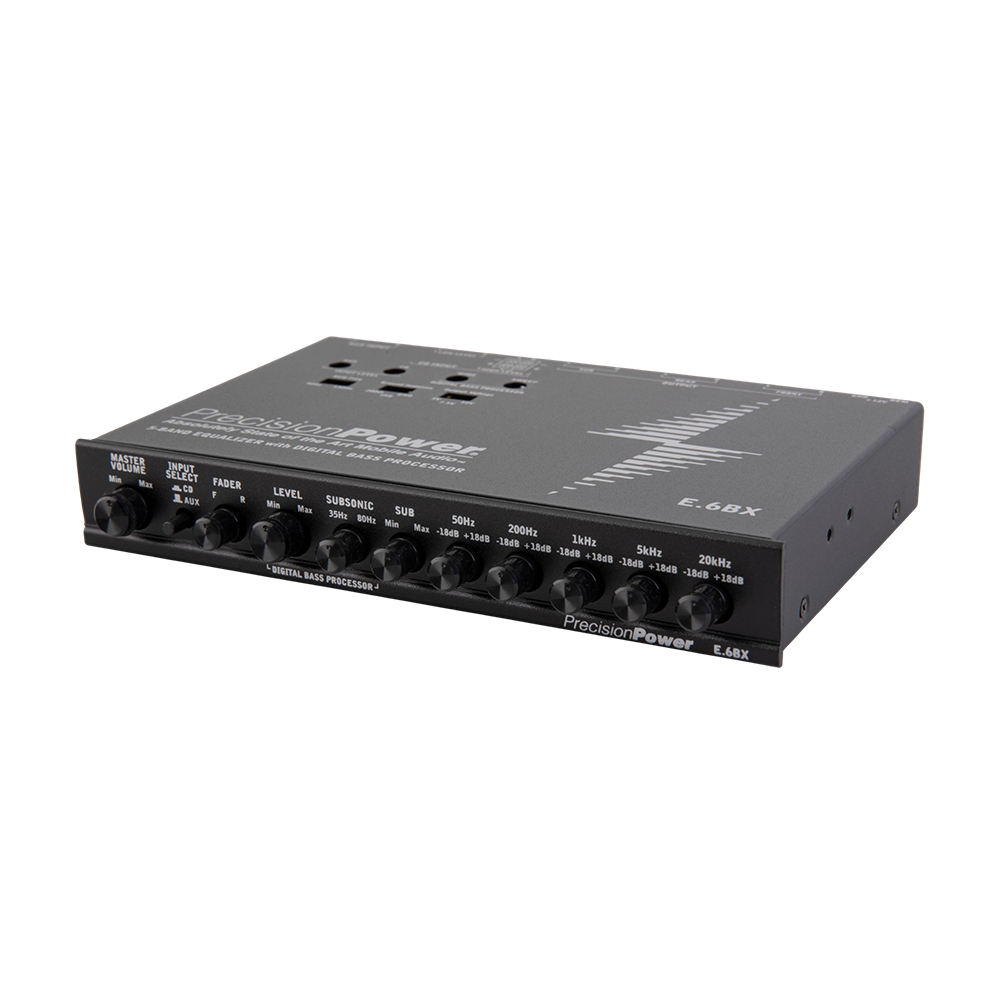

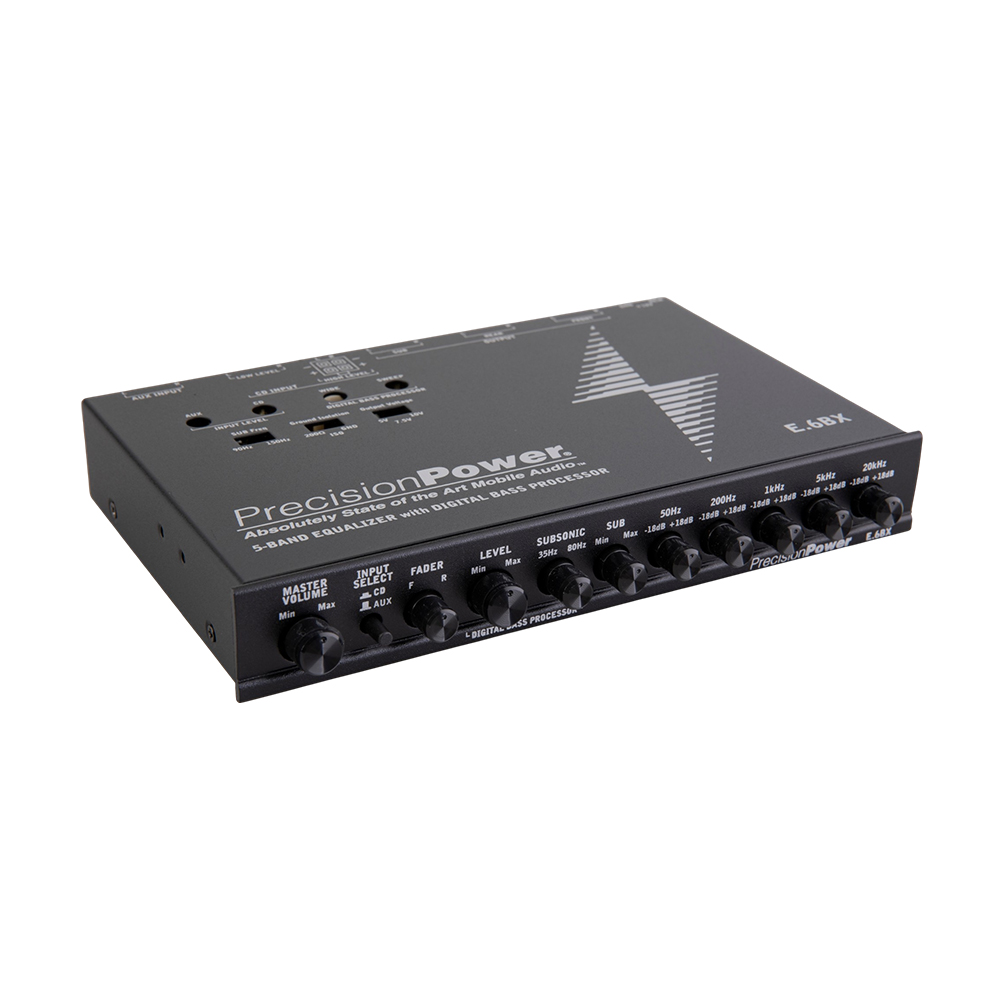

E.6BX
Description
The Precision Power E.6BX is a compact 1/2 DIN 5-band equalizer and digital bass reconstruction processor designed for users who want more control, clarity, and impact from their car audio system. Built as a high-performance pre-amplifier, the E.6BX gives you detailed sound-shaping control with multiple inputs, strong preamp output, and adjustable equalization to help fine-tune your system to your listening preference.
Housed in a compact chassis, the E.6BX combines 5-band EQ control, ParaBASS low-frequency contouring, subwoofer level adjustment, and a Digital Bass Processor to help restore and enhance low-frequency performance. With AUX, low-level, and high-level inputs, 7V RMS preamp output, 20dB preamp gain, and a wide range of bass adjustment features, the E.6BX is a powerful processor for upgrading almost any aftermarket or factory audio system.
Features
- 1/2 DIN 5-band equalizer with digital bass reconstruction processor

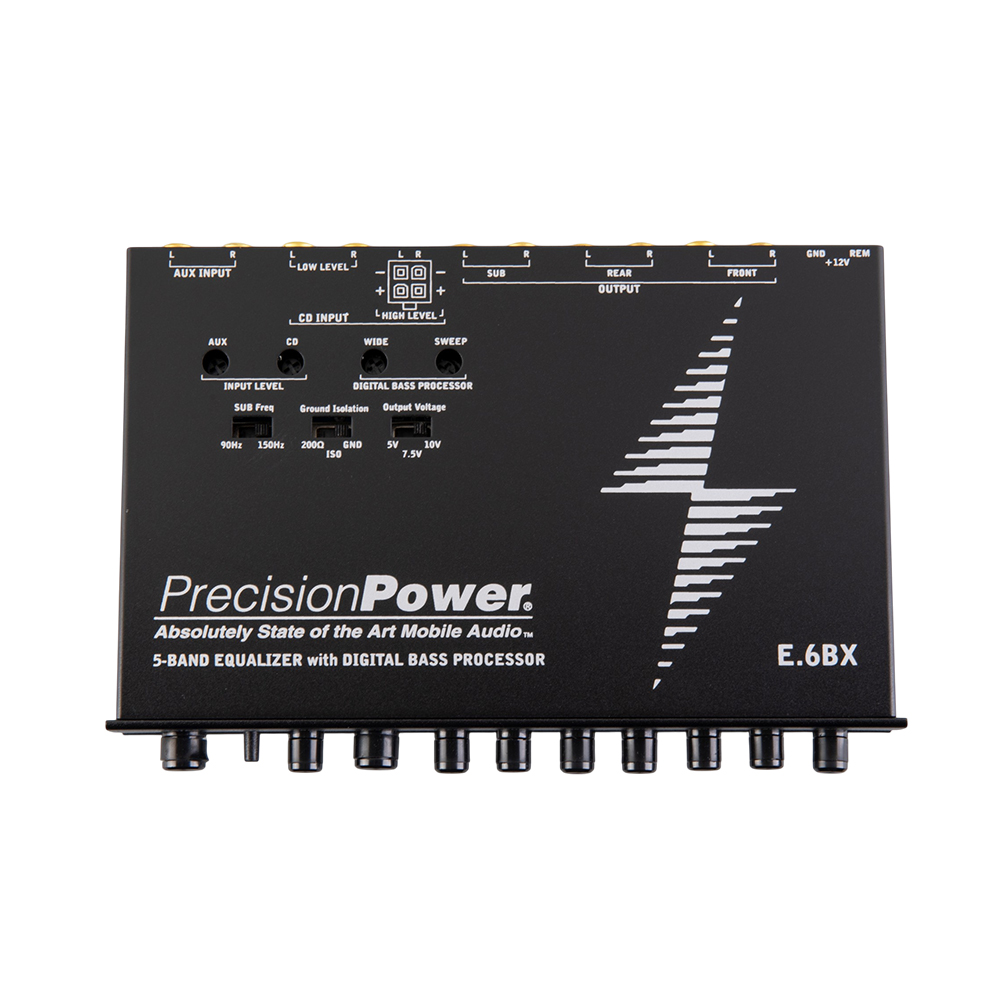

Multiple input options: AUX, low-level, and high-level inputs
ParaBASS low-frequency contouring
Wide and sweep parametric bass control
Bass Maximizer effect control
Digital Bass Processor enhances low-frequency performance
Subwoofer level control
20dB preamp gain

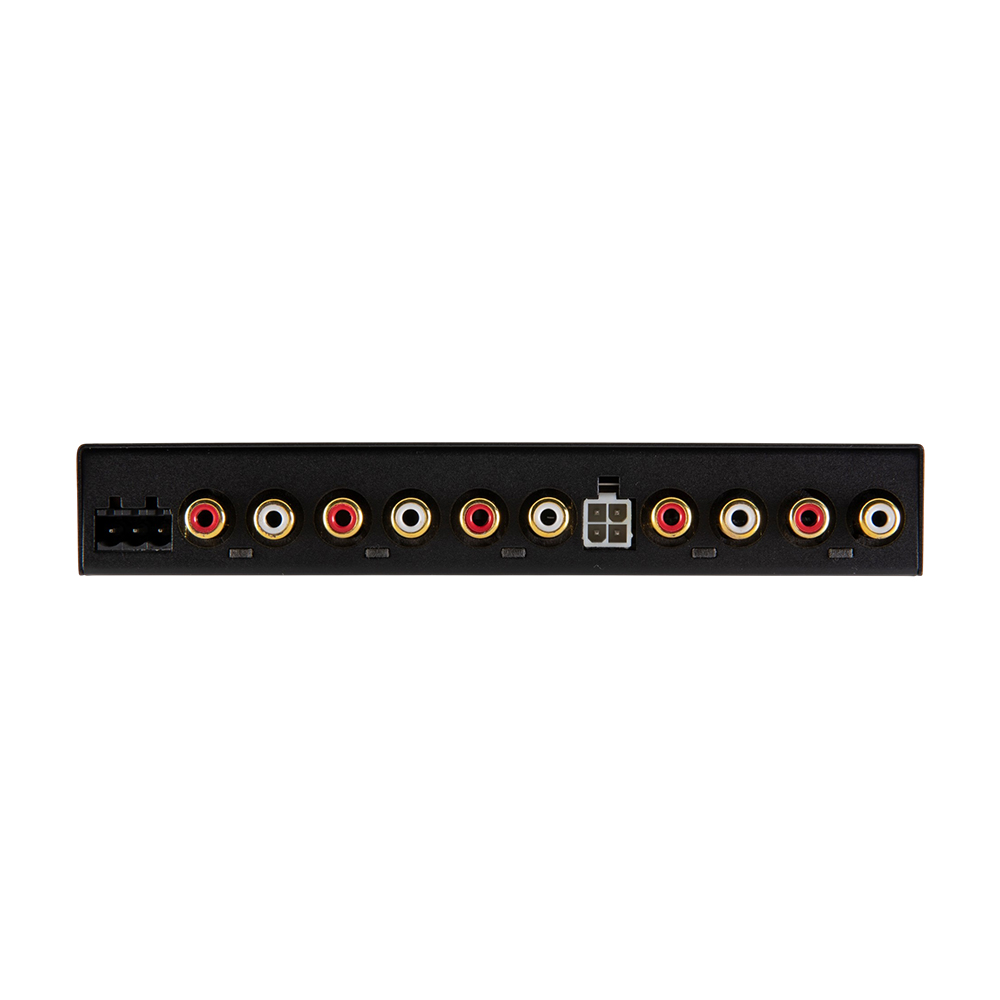

3 preamp outputs / 6-channel output configuration
Maximum output level: 7V RMS / 12V peak
Total harmonic distortion: 0.01%
Frequency response: 20Hz-20kHz
Signal-to-noise ratio: 110dB
Subsonic frequency range: 35Hz-80Hz

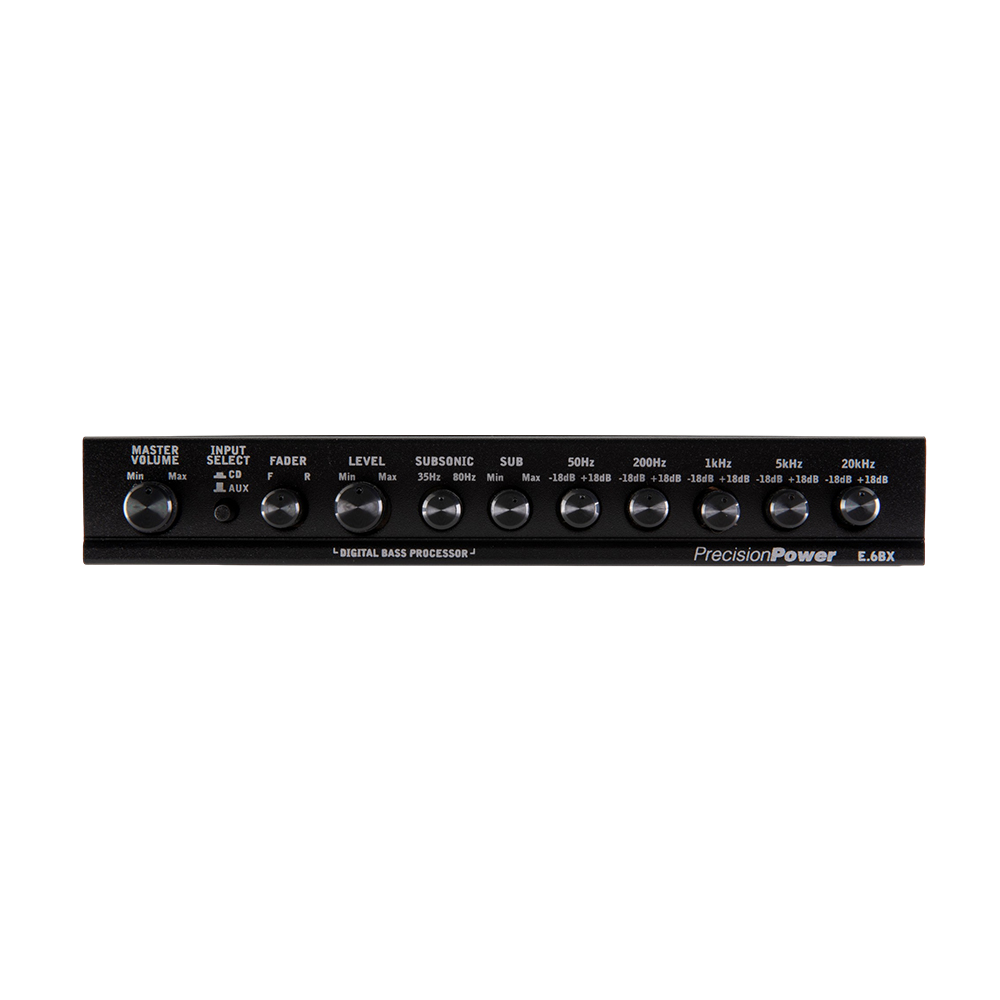

Equalizer frequencies: 50Hz, 200Hz, 1kHz, 5kHz, 20kHz
Equalization cut/boost: ±18dB
High headroom PWM switching power supply
Recommended fuse rating: 1A
Dimensions: 7″W x 5.1″D x 1.2″H
