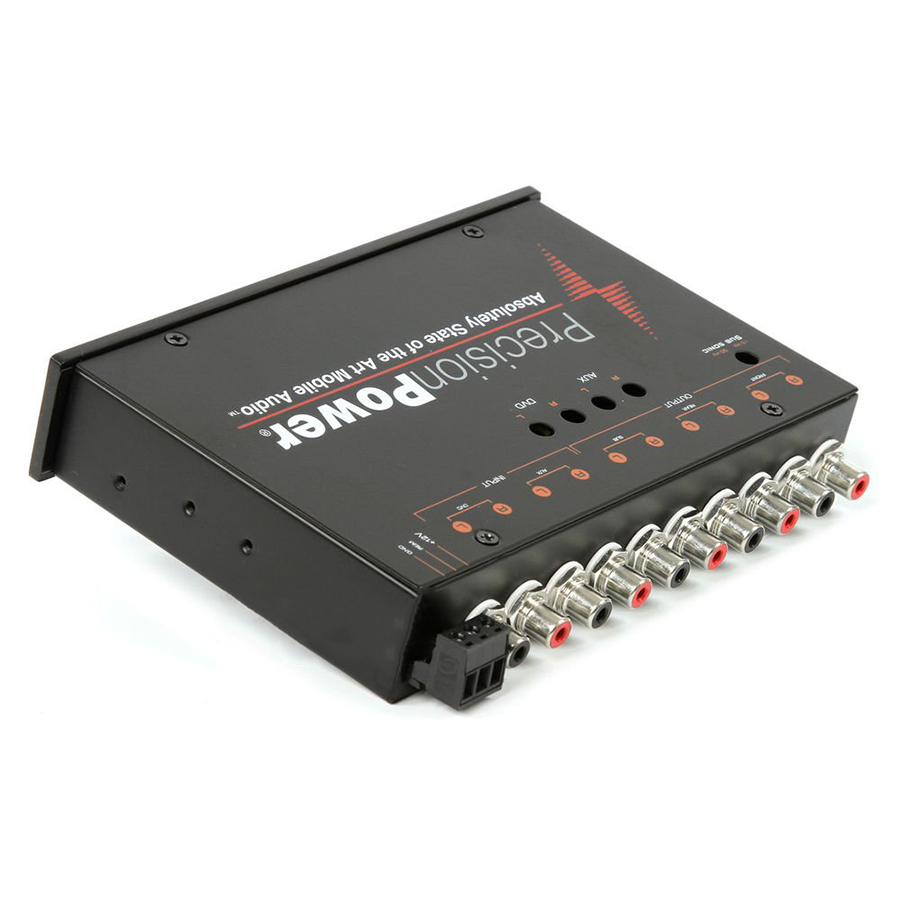

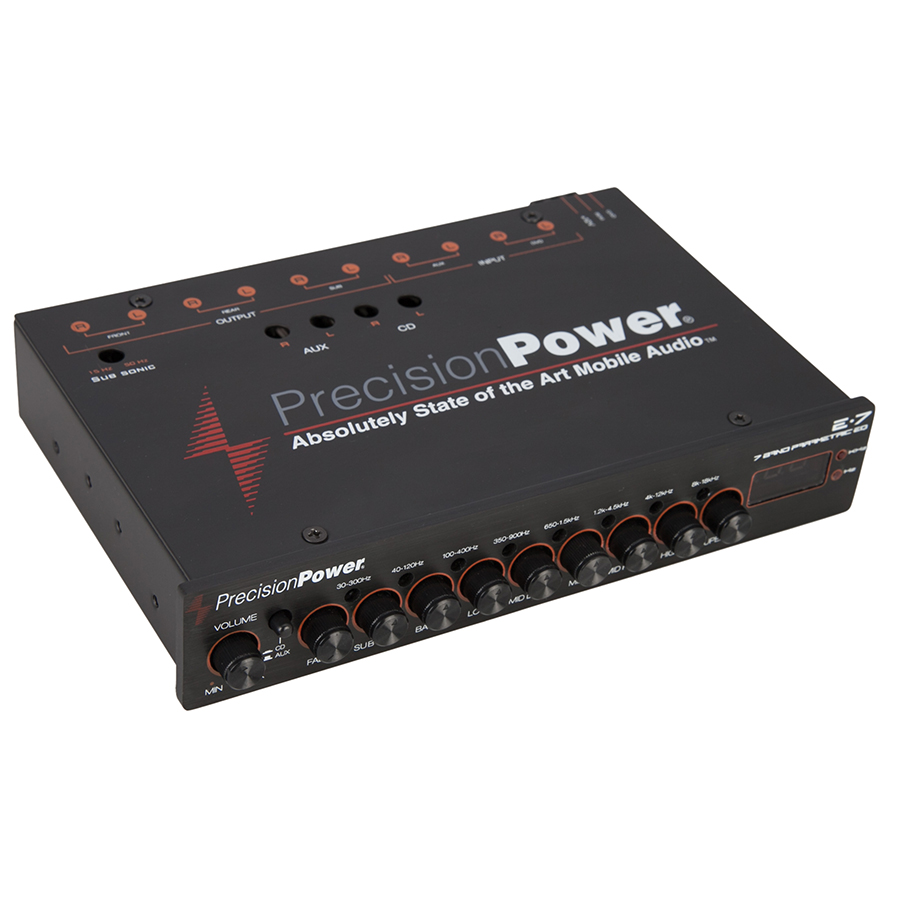

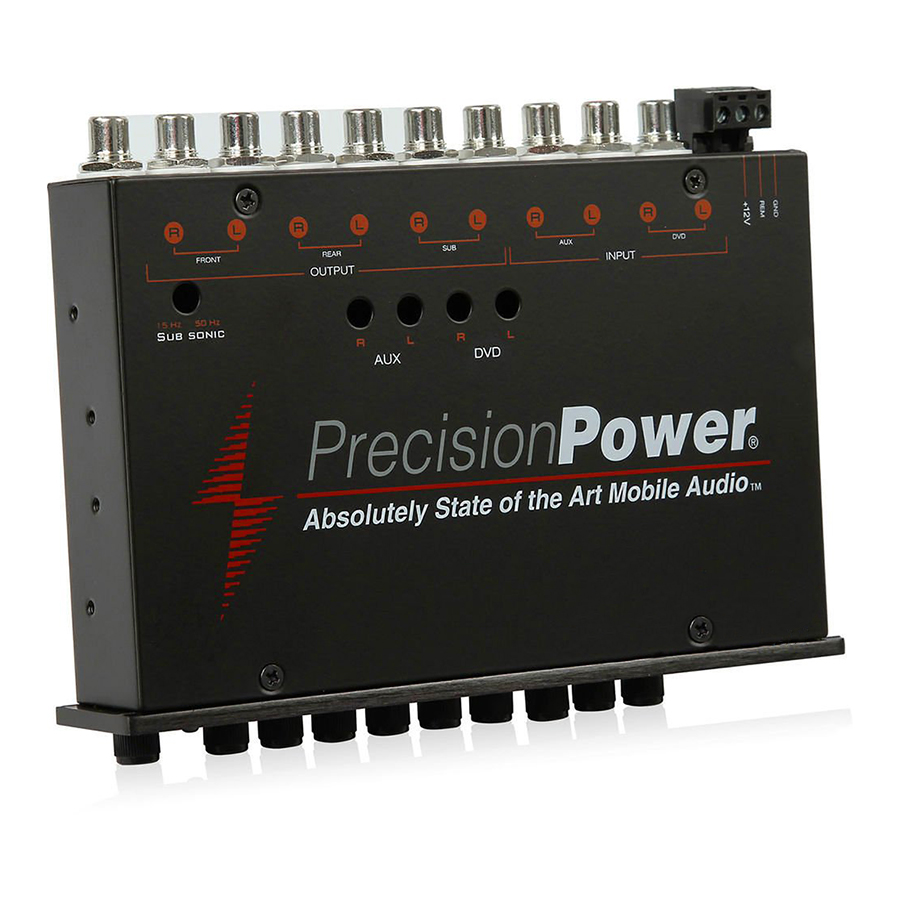

E.7 Equalizer

7-Band Parametric Equalizer w/ LED Display

[TRENDING NOW]

Featuring two sets of RCA inputs (main and a selectable auxiliary input), this EQ takes your input signal and allows you to alter and adjust the sound to your liking. The output signal is then delivered via the high voltage (up to 7V max) pre-amp RCA outputs for the Front, Rear, and Subwoofer channels (the subwoofer out-put channel features an independent volume control knob on the face of the unit as well)

Category: Tags: , ,

Description

7-Band Dual Zone Equalizer with Auxiliary Input.

Maybe you’ve got an older car stereo system that you need to get more. Perhaps you’ve got an all-new setup that you crave the maximum potential. In either case, Precision Power E.7 (7) bands of equalization that’ll let you fine-tune your sound, along with independent master volume, subwoofer level, and fader controls that’ll maintain your highs and lows in balance.

The E.7 features RCA inputs so that you can connect them to your aftermarket system. The RCA outputs ensure that your amplifiers will get a clean, powerful signal for maximum performance.

Features

7-Band Dual Zone Equalizer with Auxiliary Input.

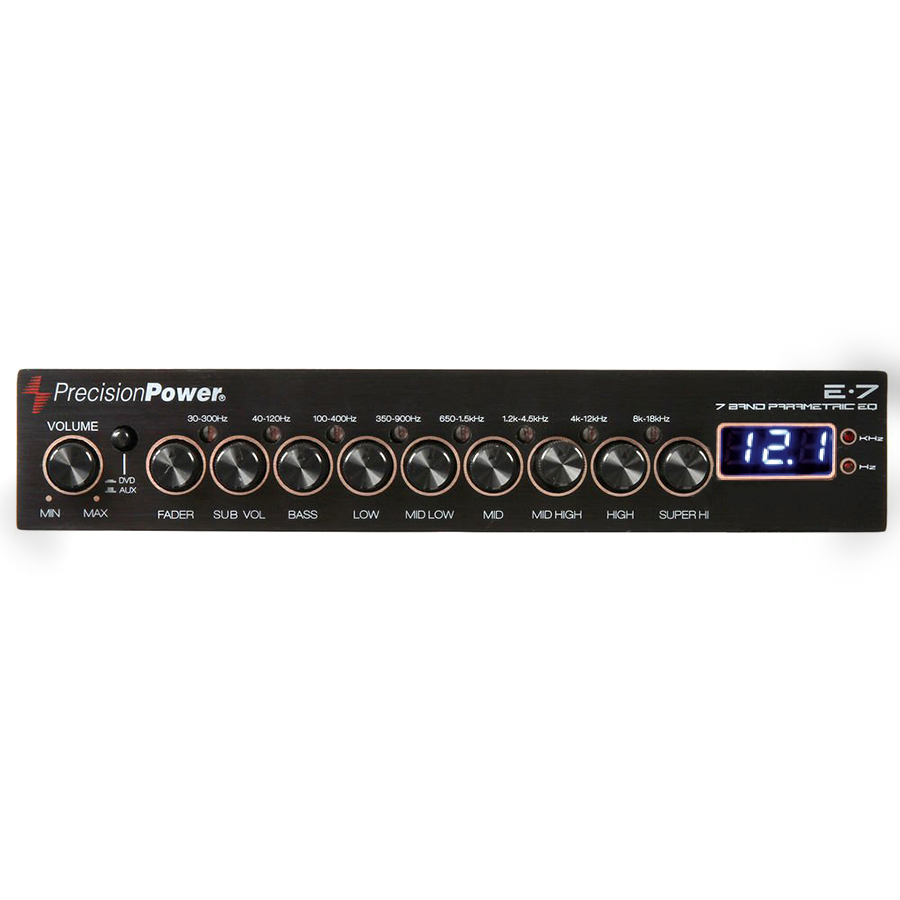

Seven Variable Frequency Bands

Master and Subwoofer Volume Controls

+/- 12dB Boost/Cut for Each Band

LED Display Shows Frequency & Voltage

Independent Subwoofer Level Control

Variable 30-300Hz Subwoofer Low-Pass Filter

Variable 15-50Hz 12dB Subsonic Filter

2 Selectable Balanced RCA Inputs

Line Driver Built-In

Independent Channel Gain Controls

Input Selector Switch & Fade Control

Built-in 7V MAX Line Driver

Operating Voltage: 11V-15V

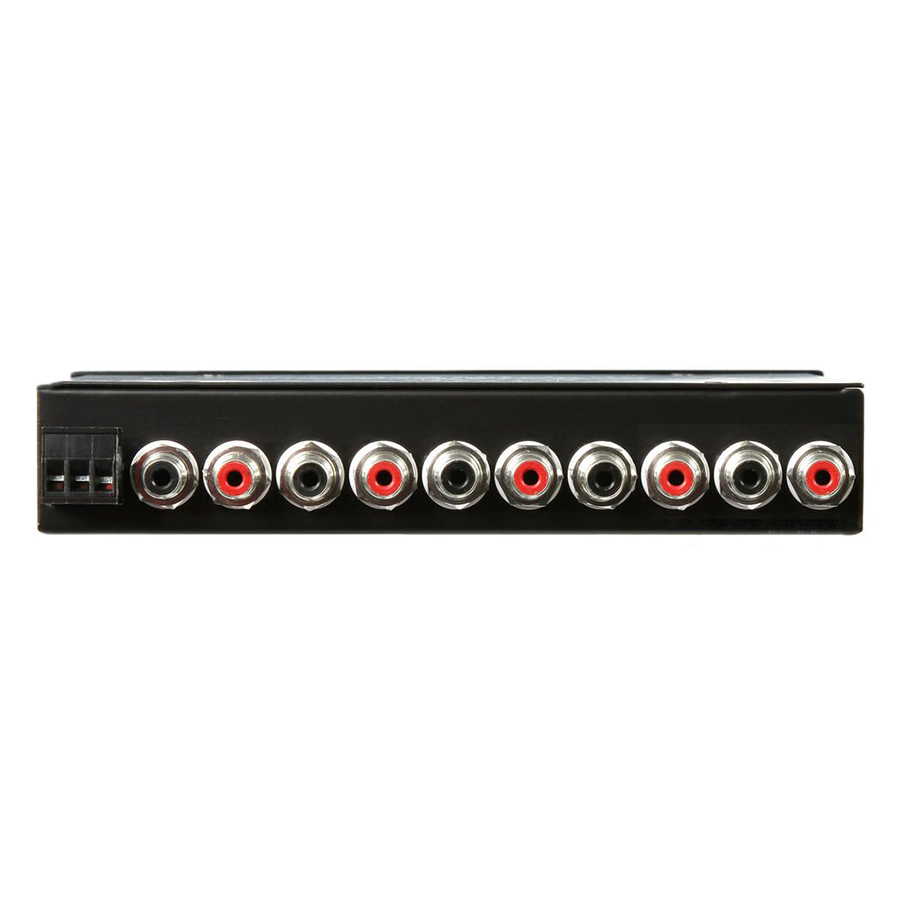

Front, Rear, & Subwoofer RCA Outputs

White LED Backlit Control Knobs

Includes Installation Brackets and Hardware

Support

Equalizer Owner’s Manual (.pdf)

Equalizer Cut Sheet (.png)

Warranty Procedure

Please complete the entire Return Authorization Request Form. Read carefully and fill out all the information accordingly. For non-warranty repairs, please provide details of the problem and request an estimate before sending the product. After receiving and approving your completed request, Precision Power will issue a Return Authorization (RA) Number, which will be forwarded to you via e-mail.
