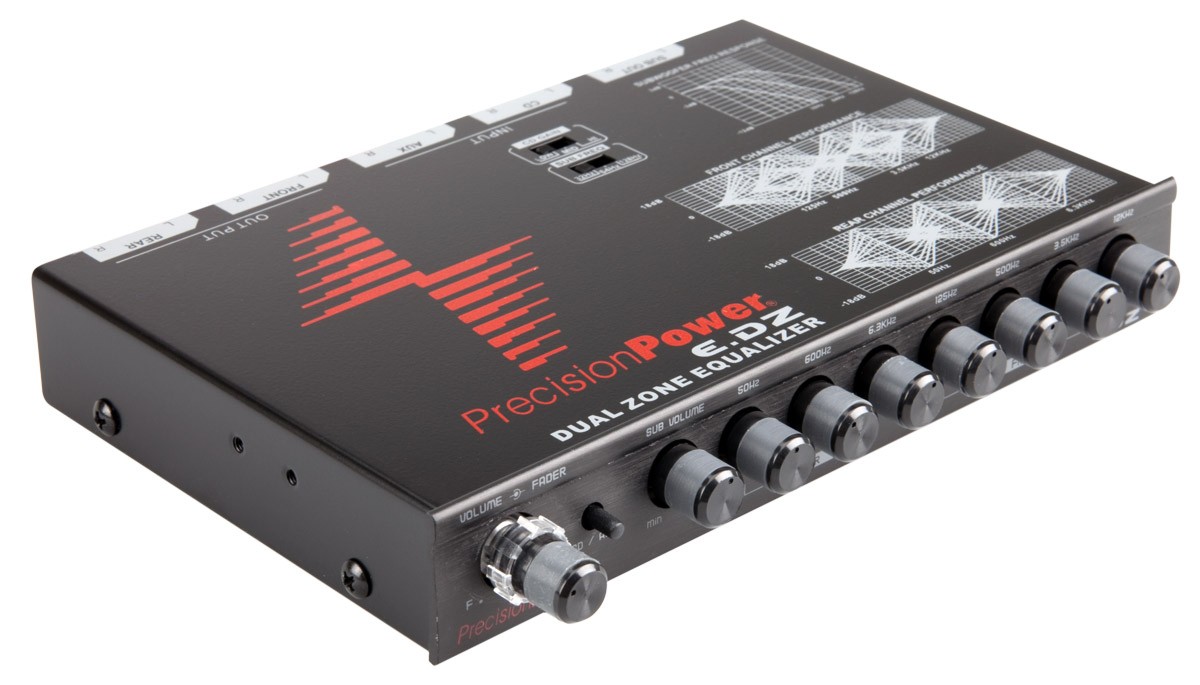

E.DZ Equalizer

1/2 DIN 3 & 4 Band Dual-Zone Equalizer

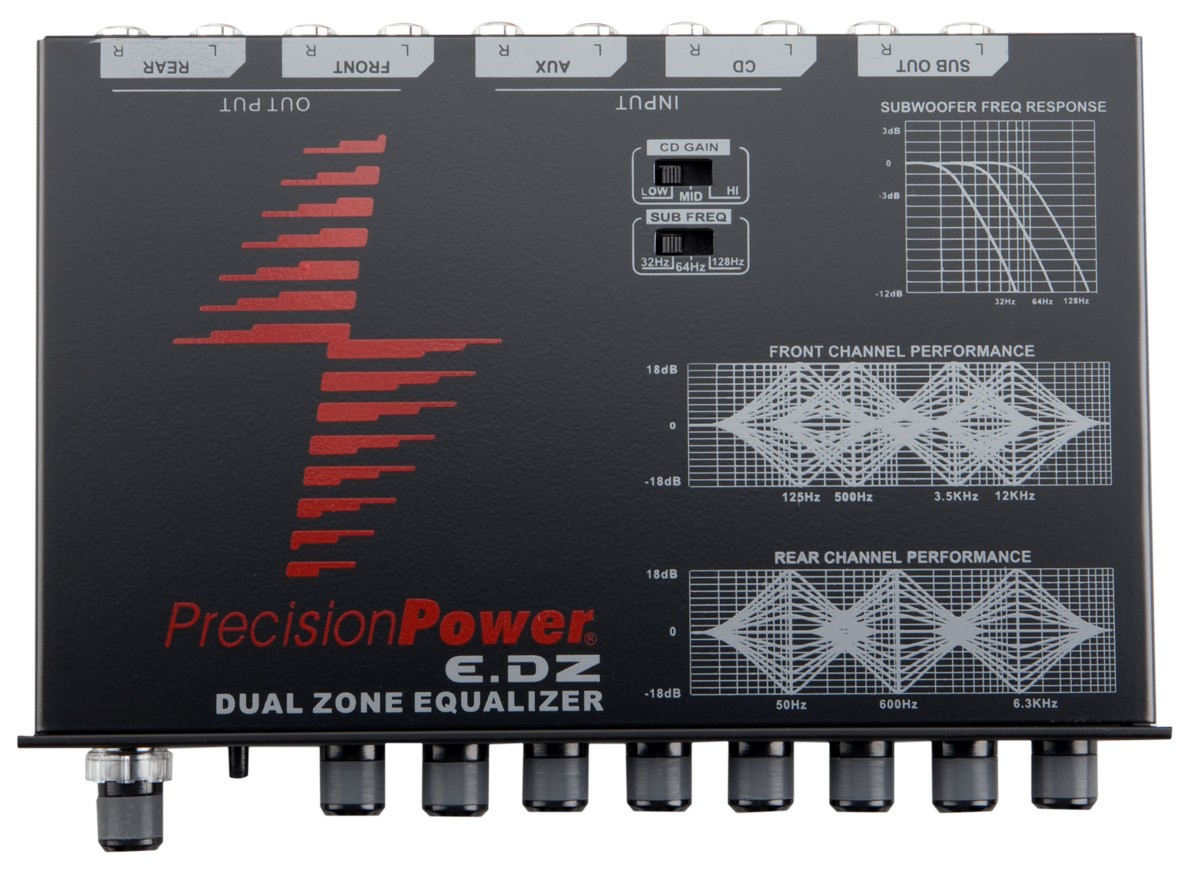

Featuring two sets of RCA inputs (main and a selectable auxiliary input), this EQ takes your input signal and allows you to alter and adjust the sound to your liking. The output signal is then delivered via the high voltage (up to 7V max) pre-amp RCA outputs for the Front, Rear, and Subwoofer channels (the subwoofer out-put channel features an independent volume control knob on the face of the unit as well).

Category: Tags: , ,

Description

7-Band Dual Zone Equalizer with Auxiliary Input.

Maybe you’ve got an older car stereo system that you need to get more. Perhaps you’ve got an all-new setup that you crave the maximum potential. In either case, Precision Power E.DZ (7) bands of equalization that’ll let you fine-tune your sound, along with independent master volume, subwoofer level, and fader controls that’ll maintain your highs and lows in balance.

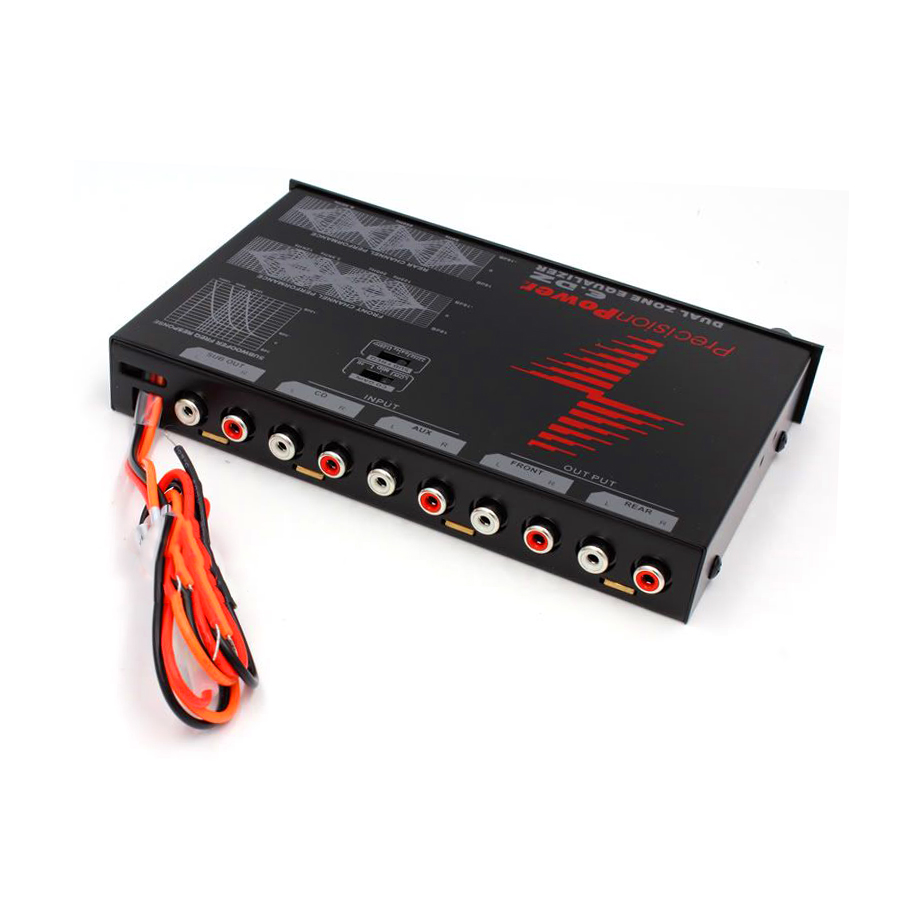

The E.DZ features RCA inputs so that you can connect them to your aftermarket system. The RCA outputs ensure that your amplifiers will get a clean, powerful signal for maximum performance.

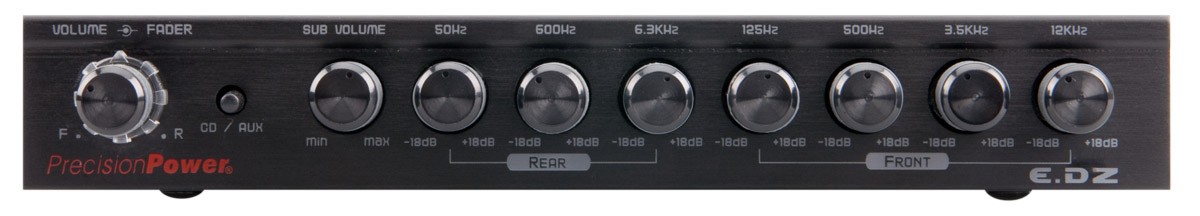

Features

7-Band Dual Zone Equalizer with Auxiliary Input.

2 Selectable Balanced RCA Inputs w/ Input Gain
Four 18dB Front Bands; 125Hz, 500Hz, 3.5kHz, 12kHz
Three 18dB Rear Bands; 50Hz, 600Hz, 6.3kHz
Independent Subwoofer Level Control
Selectable Subwoofer LPF; 32Hz, 64Hz, 125Hz
Up to 8V Front, Rear, & Subwoofer RCA Outputs
Red Backlit Control Knobs

Support

Equalizer Owner’s Manual (.pdf)

Equalizer Cut Sheet (.png)

Warranty Procedure

Please complete the entire Return Authorization Request Form. Read carefully and fill out all the information accordingly. For non-warranty repairs, please provide details of the problem and request an estimate before sending the product. After receiving and approving your completed request, Precision Power will issue a Return Authorization (RA) Number, which will be forwarded to you via e-mail.
